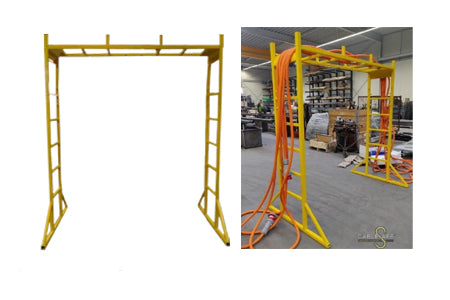

Cable Bridge to suspend cables over a walkway
CableSafe cable bridge is the heavy duty alternative for CableSafe cable guards. The CableSafe cable bridge eliminates cables routed on the walkway and therfore will reduce the need for cable guards on the floor. The cable bridge is ideal when the walkway is used for small vehicles (e.g. bikes, pallet wagons, sometimes even fork lift trucks, etc.) The standard cable bridges are designed to safely suspend cables / hoses during construction or maintenance over walkways and roads.
Benefits of the Cable Bridge:
- 1. To suspend cables over a longer distance
- 2. Prevent slips and trips and falls, as one of the largest incident rates for most companies
- 3. To provide a clean work environment and therefore improve housekeeping
The cable bridge is custom made of coated steel. The edges of the bridge are rounded to protect cables for damaging. The cable bridge holds up to 500 kg of cable weight – tested with 1000 kg. Weight capacity can be increased by custom designed units. the cable bridge is ideally used in combination with cablesafe safety hooks.
Material cable bridge: constructed with reinforced steel. Powder coated or hot dip galvanized options available. Average height 2.25 meter; width: up to 2 meter. The cable bridge can be extended up to 5 meter in length.
The cable bridge is transported in foldable packs of 2 meter x 1,5 meter x 1.2 meter. Weight average cable bridge unit: approximately 120 kg.
The price of the Cable Bridge is upon request depending on size and height requirements.
