Safety Hook Extreme:

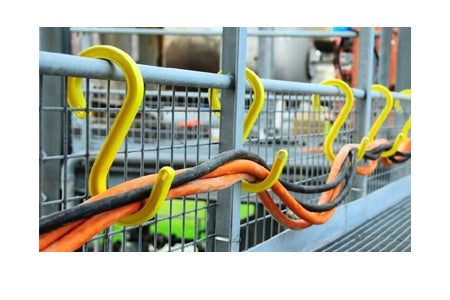

Safety Hook Extreme by CableSafe is designed for use in extreme environments. The extreme Hook is UV stabilized, Flame Retardant and Cold Weather Rated. The Safety Hook Extreme is marked: UV+FR+COLD

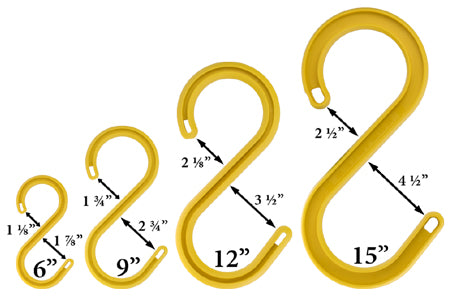

| Size | 6" | 9" | 12" | 15" | ||||||
| Size cable opening (top) | 1-1/8”(2.9cm) | 1-3/4”(4.5cm) | 2-1/8”(5.4cm) | 2-1/2”( 6.4cm) | ||||||
| Size cable opening (bottom) | 1-1/7”(2.9cm) | 2-3/4”(7cm) | 3-1/2”(8.9cm) | 4-1/2”(11.4cm) | ||||||
| Maximum load | 40kg(88lbs) | 55kg(121lbs) | 190kg(418lbs) | 265kg(584lbs) | ||||||
| Weight | 39g(0.06lbs) | 100g(0.22lbs) | 282g(0.62lbs) | 507g(1.12lbs) | ||||||
| Material | Glass reinforced polyester – injection molded product | |||||||||
| Standard Color | Yellow, Glow-in-the-Dark | |||||||||
| UV | Stabilized, guarantee 10 years - under normal usage conditions | |||||||||
| Flame Retardant | Flame Retardant, UL Recognized, 94V-0 Flame Class Rating (3) | |||||||||
| Cold Fatigue | Protection in cold weather environment | |||||||||
Safety Hook Extreme complies with:
- 18th Edition IET Wiring Regulations, July 2018
- British Standard BS7671:2018, requires cables to be adequately supported against their premature collapse in the event of a fire, January 2019.
- OSHA Part 1926.150:Subpart F, employer is responsible for the development of a fire protection program to be followed throughout all phases of the construction and demolition work.
- CPR NEN8012: 2015, creating an obligation to classify cables according to fire behavior in order to be able to market them in the EU for use in buildings.
Color:

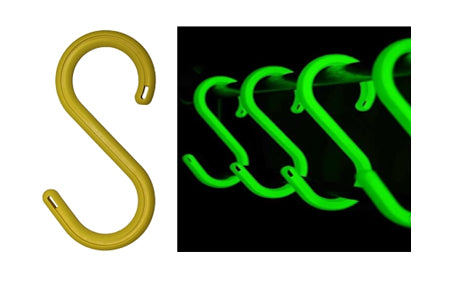

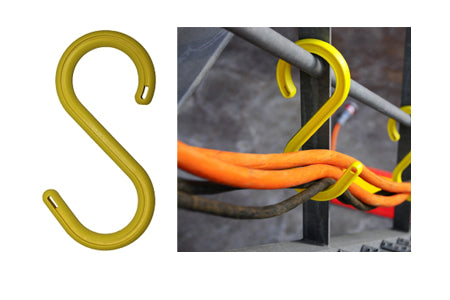

The CableSafe® Safety Hooks are available in different colors. The standard plastic S hook color is yellow, as this is often used in safety equipment. The other safety hook standard color is white. Alternatively the CableSafe® Safety Hooks are provided in glow-in-the-dark color.
